Apollo Seiko Soldering iron Tips

The APOLLO soldering tips mainly including TM(AC110V, the total length is 145mm), TS(AC110V, the total length is 101mm), DCM(AC48V, the total length is 145mm), DS(old type: DCS)(AC48V,the total length is 101mm), DN(old type: DCN): AC48V, total length 101mm, with N2 sleeve)

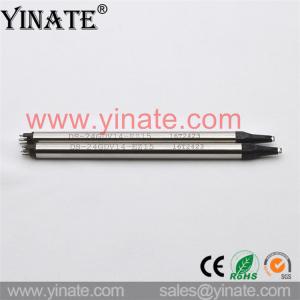

Specifications of Apollo Seiko DS-24GDV14-EZ15 / DCS-24DV1 Welding Tips

• Two side tinning
• DC48V, Total Length: 101mm
• Diameter: 6.4mm
• Tip width: a: 4mm, b: 2.4mm
• Tip thickness (c): 0.8mm
• Tin area, two side (d): 1.5mm
• Choice: Black Tip
• Lead Time: 1~2 Weeks
• Material: copper
• Apllication: For all Apollo Seiko soldering robot
• Advantage: up to 300 degree centigrade in 6 seconds
• Custom-made service available

Apollo soldering robot tips model:

D series: 08D, 10D, 13D, 16D, 20D, 24D, 30D, 40D, 50D, 60D, 80D

D-2 series: 08D-2, DV10D-2, 13D-2, 16D-2, 20D-2, 24D-2, 30D-2, 40D-2, 50D-2, 60D-2

DV2 series: 13DV2, 162, 20DV2, 24DV2, 30DV2, 40DV2, 50DV2

DV1 series: 10DV1, 13DV1, 16DV1, 20DV1, 24DV1, 30DV1, 40DV1, 50DV1

BCV1 series: 20BCV1, 24BCV1, 30BCV1, 40BCV1

DV1-2 series: 10DV1-2, 13DV1-2, 16DV1-2, 20DV1-2, 24DV1-2, 30DV1-2, 40DV1-2, 50DV1-2, 60DV1-2, 80DV1-2

PC series: 10PC, 13PC, 16PC, 20PC, 24PC, 30PC, 40PC, 50PC, 60PC

PVC series: 20PVC2, 24PVC2, 30PVC2, 40PVC2, 50PVC2

FPR series: 16FPR, 20FPR, 24FPR, 30FPR, 40FPR, 50FPR

R series: 20R, 24R, 30R, 40R, 50R

UPL series: 16UPL, 22UPL, 32UPL
